En 1730 (table, bed, wardrobe) Durability Test Machine

1 / 5

En 1730 (table, bed, wardrobe) Durability Test Machine

Customization:	Available
After-sales Service:	Installation, Operation and Maintenance Videos and
Warranty:	14 Months

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.XB-OTS-P

Max Diameter<500mm

Mass Scope<900kg

TypeImpact Testing Machine

Accuracy Grade1

Load WayElectronic Load

Loading MethodDynamic Load

DisplayDigital

ControlManual Control

Weight100-500Kg

Power SourceAC220V

Lead Time25 Days

Specification120*136*210cm

HS Code90248000

🛠️

Product Description

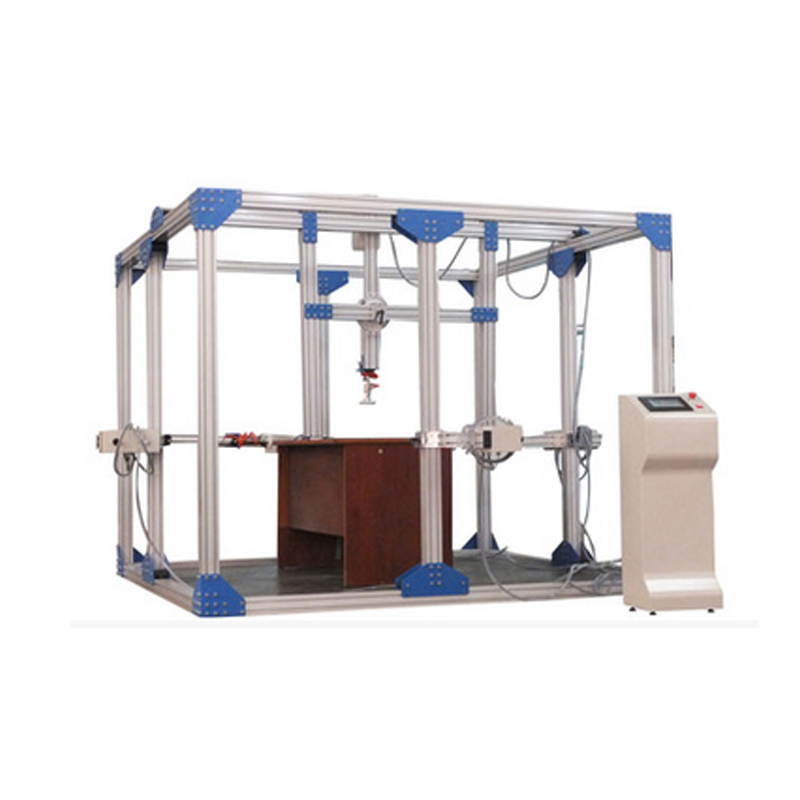

EN 1730 (Table, Bed, Wardrobe) Durability Test Machine

Suitable for testing the mechanical properties of table furniture. It can perform horizontal static load and horizontal durability testing. This machine is ideal for the stability test of straight-back chairs and stools, reclining chairs, and seats adjustable to a straight-back state.

Compliance Standards

EN 581-3, EN 527-3, EN 1730
GB/T 10357.1-2013 Table Strength and Durability
GB/T 10357.4-2013 Cabinet Stability
GB/T 10357.5-2011 Cabinet Strength and Durability
GB/T 10357.6-2013 Strength and Durability of Single-layer Beds
GB/T 10357.7-2013 Table Stability

Technical Parameters

Frame size: 3.5*2.6*2.75m (80*80mm aluminum profiles)
Loading cylinder: Four units, 50mm diameter, adjustable stroke
Max loading force: 1500N
Force induction: High-precision force sensor (3KN capacity)
Control mode: PLC control
Counter: 0~999,999 times programmable
Power source: 1∮AC 220V 50Hz 5A

⭐

Advantages & Services

Core Advantages

24 hours online support
35 years of industry experience
Sample chamber for each model
Best price and fast delivery
OEM & ODM available
ISO, CE, UL, ASTM, DIN, EN compliance

Customer Support

Professional Installation
Employee Training Services
Calibration Services
Preventative Maintenance
On-site & Online Diagnosis
Lifetime maintenance service

🖼️

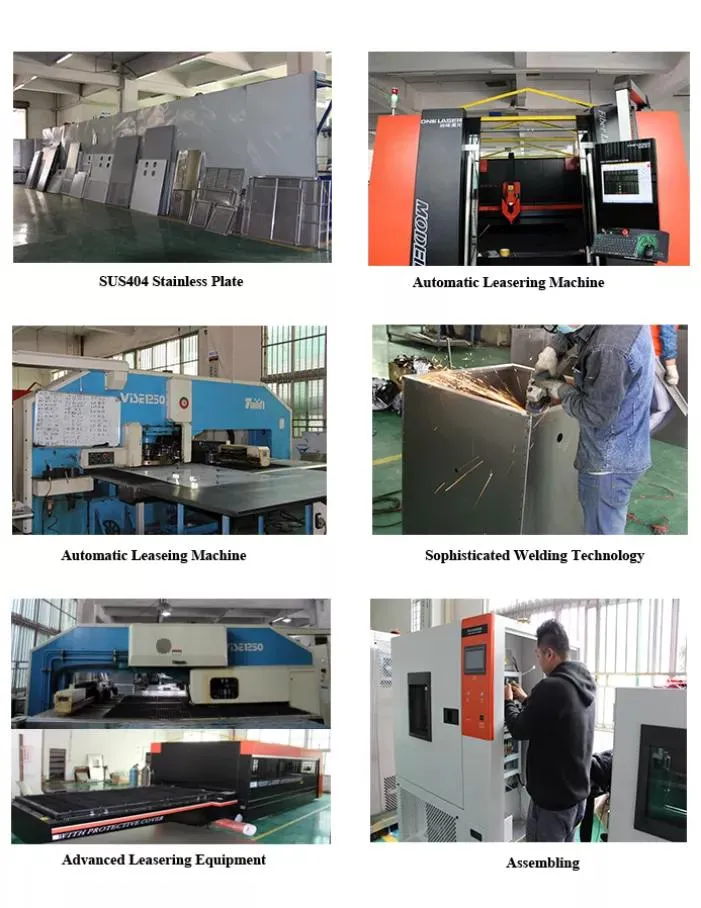

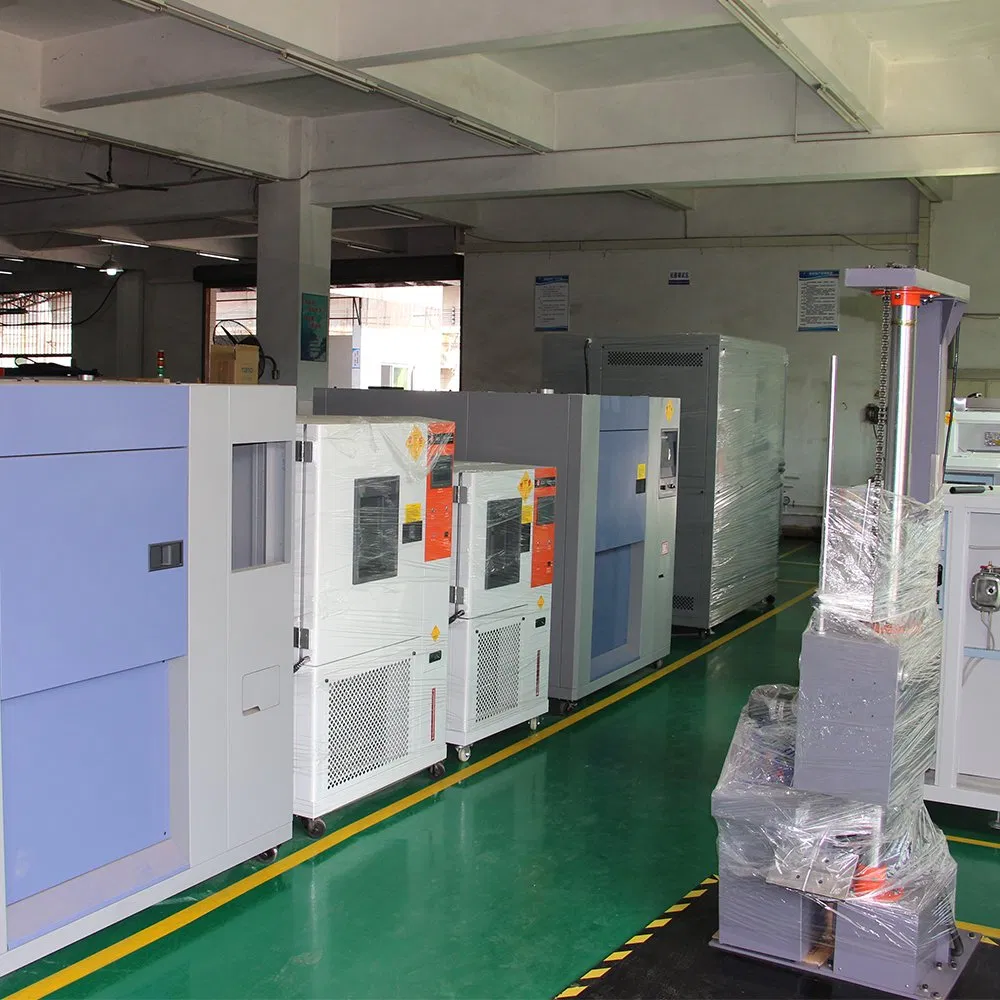

Product & Factory Gallery

❓

Frequently Asked Questions

1. What is the warranty period for the testing machines?

Every machine has a 14-month warranty after shipment. We generally offer 12 months of free maintenance, plus an additional 2 months to account for sea transportation time.

2. How long is the typical delivery term?

If the item is in stock, delivery is immediate. For non-stock items, the typical delivery time is 15-20 working days after receiving the deposit. Special arrangements can be made for urgent needs.

3. Can the machines be customized with a specific logo?

Yes, we provide customization services. We can modify machine specifications according to your requirements and apply your company logo to the equipment.

4. How is the equipment installed and operated?

We provide detailed operating instructions and English videos. Most machines are shipped fully assembled; you simply need to connect the power. On-site installation is also available if required.

5. What happens if the machine malfunctions?

You can contact us via email or video chat. Once the problem is confirmed, we will send new spare parts or arrange for an on-site repair technician to assist you.

6. Are your products compliant with international testing standards?

Yes, our products reach international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, and VDE.
